Linux on the Toshiba Tecra C50-E1516

Author: Michael Minn (www.michaelminn.com)

8 December 2022

Introduction

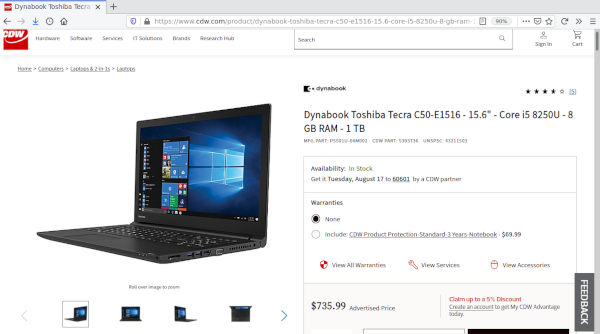

Toshiba Tecra C50-E1516

This page describes how to set up a Debian 11.2 (Bullseye) Linux operating system on a Toshiba Tecra (Dynabook) C50-E1516 notebook computer.

Dynabook was Toshiba's personal computer division until it was sold to Sharp Corporation in 2018. As of this writing, Sharp is majority-owned by Foxconn. However, Dynabook still maintains some Toshiba branding on products, including this machine.

The machine that I purchased on 15 August 2021 features:

$735.99 list price

Network Install

A network install after booting from a flash drive is fairly straightforward except for partitioning. The following are my choices and you may need to choose other options depending on your situation.

This install assumes you have a wired ethernet connection.

This installation is based on a Linux-only installation.

Download: the netinst from Debian.org and use it to create a bootable flash drive. Assuming you already have a Linux box, the ISO can be directly copied to the flash drive device. Assuming the device is /dev/sdb (you can check with the dmesg command), all you need is a simple copy:

sudo cp debian-8.5.0-i386-netinst.iso /dev/sdb
sync

Boot from Flash Drive: Insert the flash drive into an USB slot and reboot When the American Megatreds BIOS splash screen comes up press F-12 and choose USB Memory.

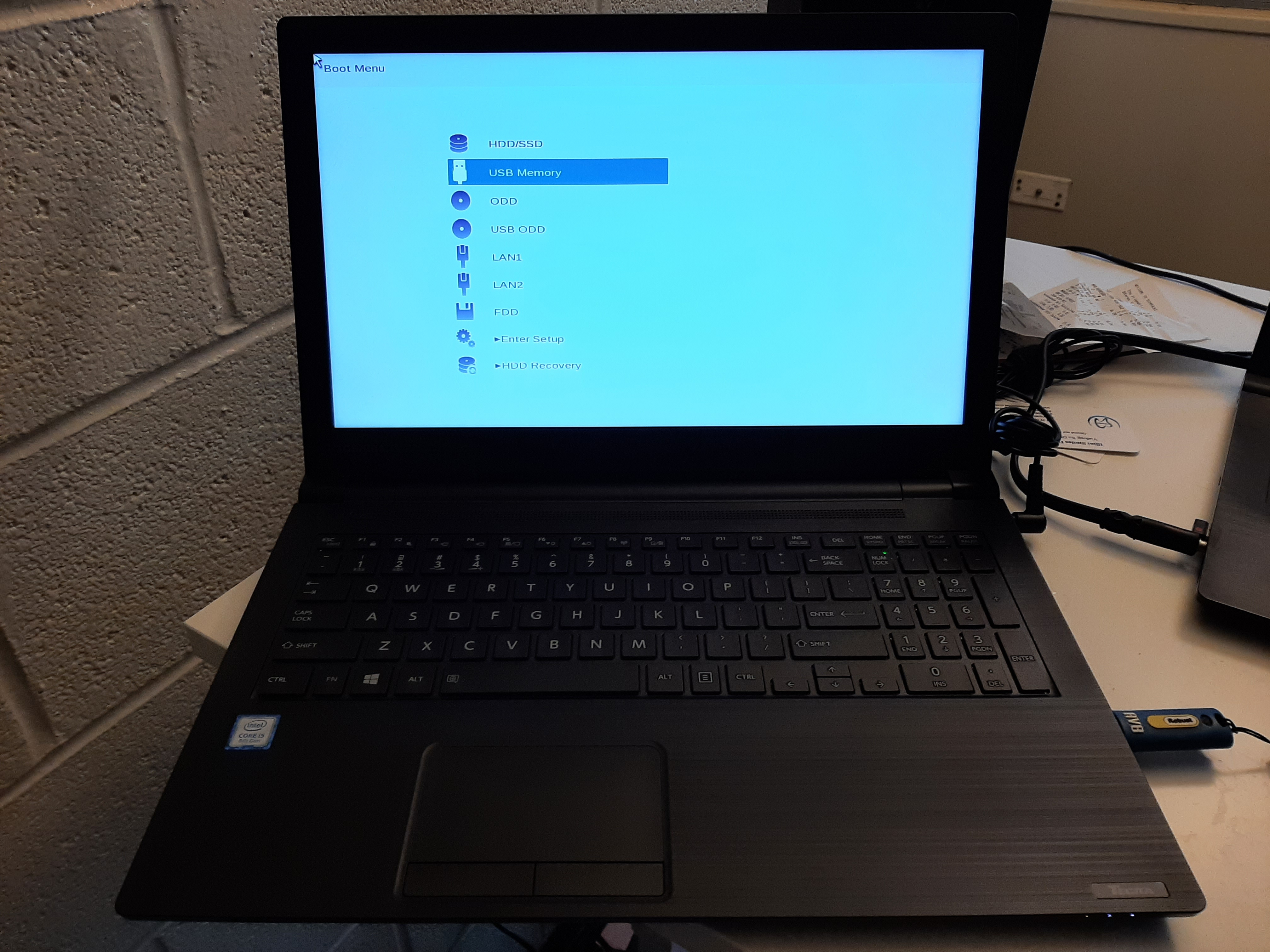

Boot menu

The machine takes a few seconds to load the OS. You can press ESC to view boot messages, although there aren't alot of meaningful ones issued anymore.

Installer Menu: Select Install

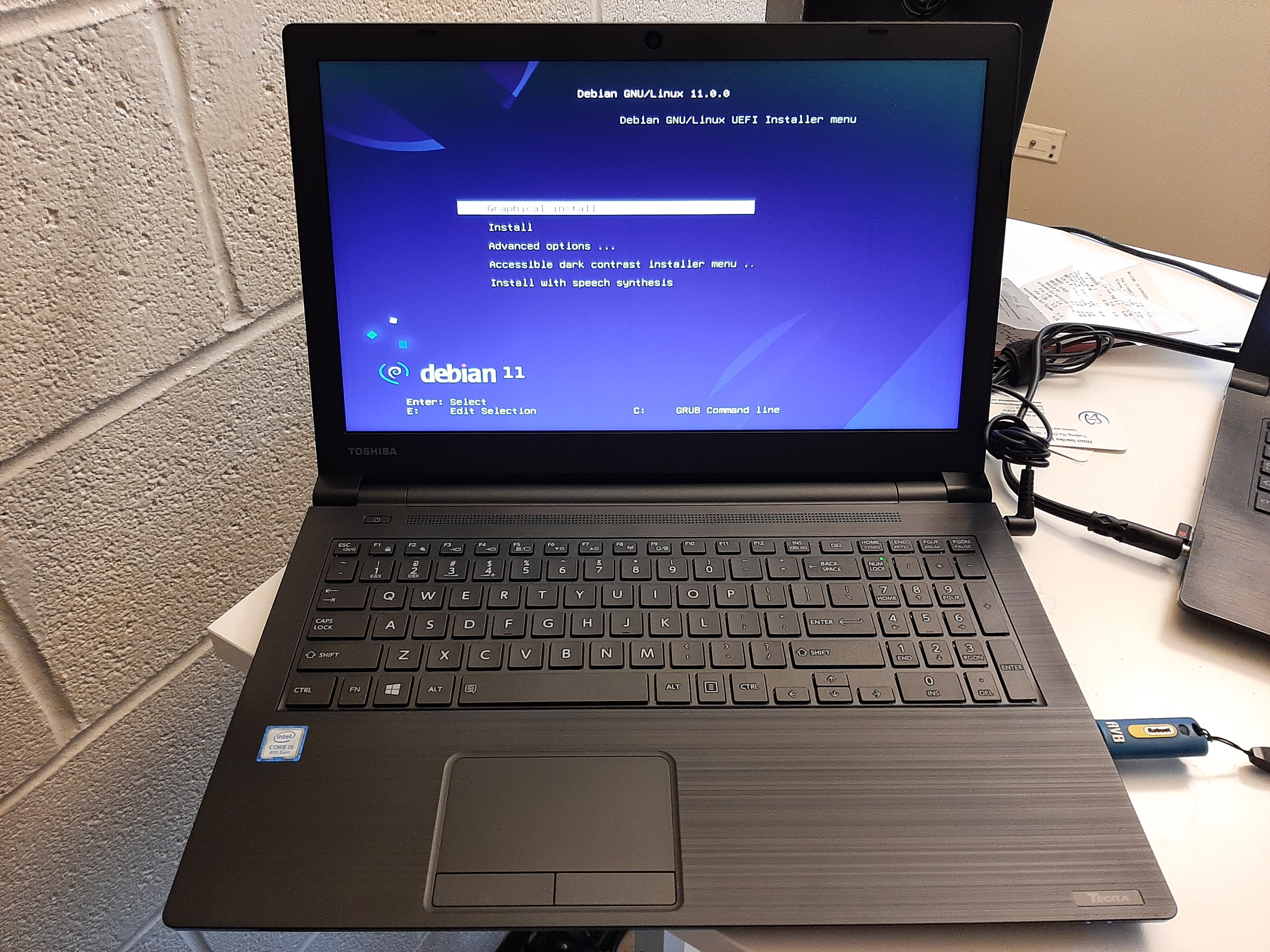

Installer menu

Select a Language: Your choice (mine is English)

Select Your Location: Your choice (mine is United States)

Configure the keyboard: Your choice (mine American English)

Detect network hardware: You must have ethernet plugged in.

Load missing firmware from removable media?: The wireless card needs firmware. You can install it later (see below).

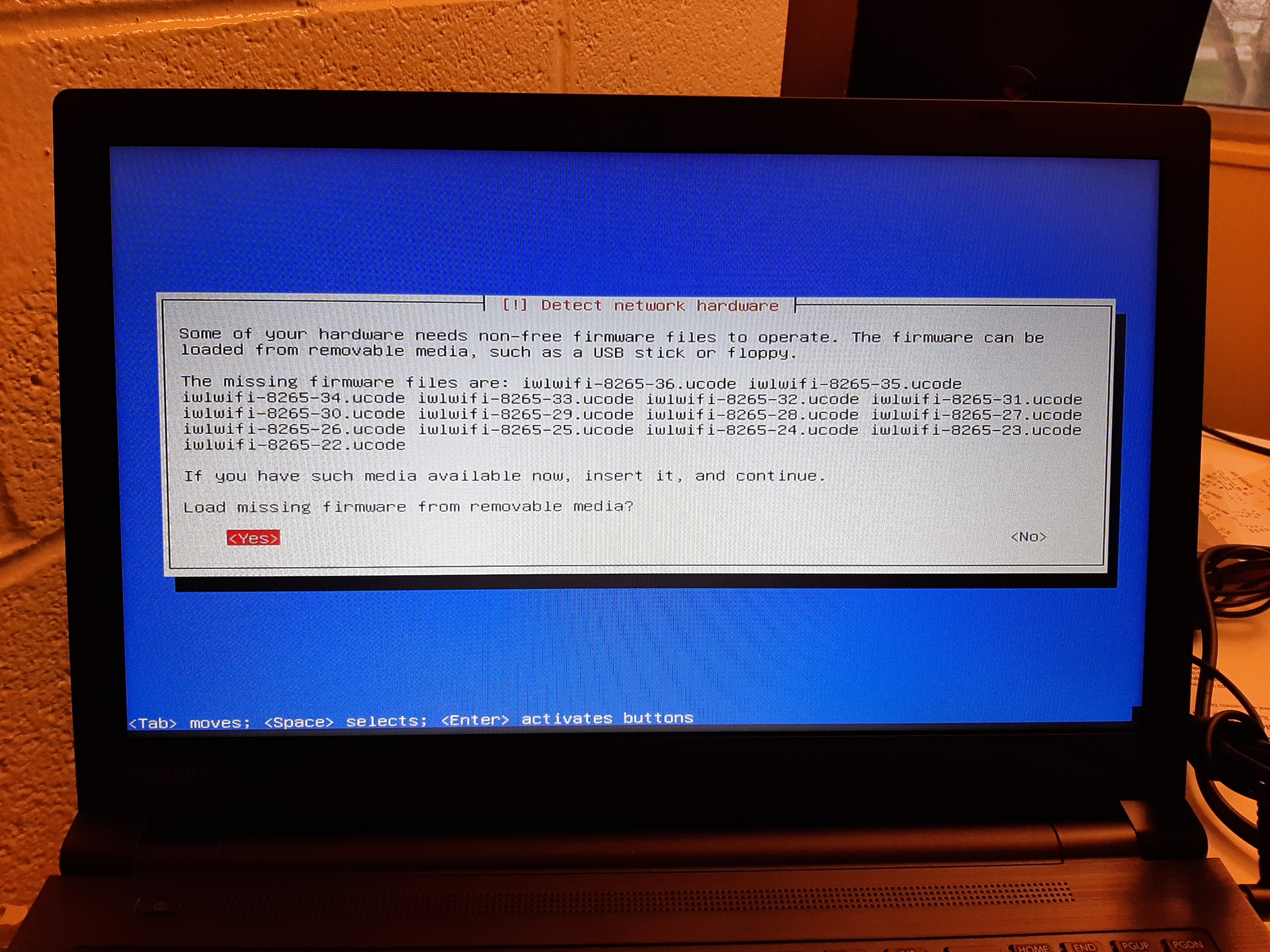

Missing wi-fi card firmware

Hostname: Arbitrary choice that doesn't matter much unless you're setting up a web server. You can change it later in /etc/hostname

Domain Name: Another arbitrary choice that doesn't matter much unless you're setting up a web server

Root Password: Choose the way you choose a spouse: memorable but strong

User Account Real Name: You may want to use a fake name to preserve anonymity

Username: This will be what you normally log in with

Password: Ditto

Time Zone: Your choice (Central)

Partition disks - method: Using Guided - use entire disk, with Separate /home partition.

Partition disks - select disk: SCSI2 (0,0,0) (sda) - 1.0 TB ATA TOSHIBA MQ04ABF1

Partitioning scheme: Separate /home partition

Overview I modified the guided scheme to expand / to 100 GB and swap to 9 GB:

SCSI2 (0,0,0) (sda) - 1.0 TB ATA TOSHIBA MQ04ABF1
		  1.0 MB	FREE SPACE
	#1	536.9 MB   B f	ESP
	#2	100.0 GB     f	ext4		/
	#3	  9.0 GB     f  swap		swap
	#4	890.7 GB     f	ext4		/home
		728.6 kB	FREE SPACE

Installing the base system: The installer will run for a few minutes

Configure the package manager: This determines which mirror server to use. Closer is better. I chose United States and debian.uchicago.edu.

HTTP Proxy: If you're in a corporate network, you may need one. Home folks can usually leave this blank

Select and install software: This will take a few minutes depending on your internet speed.

Configurinng popularity-context: Sounds too Windoze-phone-home. No.

Software Selection: Another personal preference. I use IceWM as a window manager with no desktop (see below), so my choices were the Debian Desktop, no graphic desktop (GNOME) but with standard system utilities.

Package Installation: With my choices, the system had to retrieve 1366 files, which took around 45 minutes.

Finish the Installation

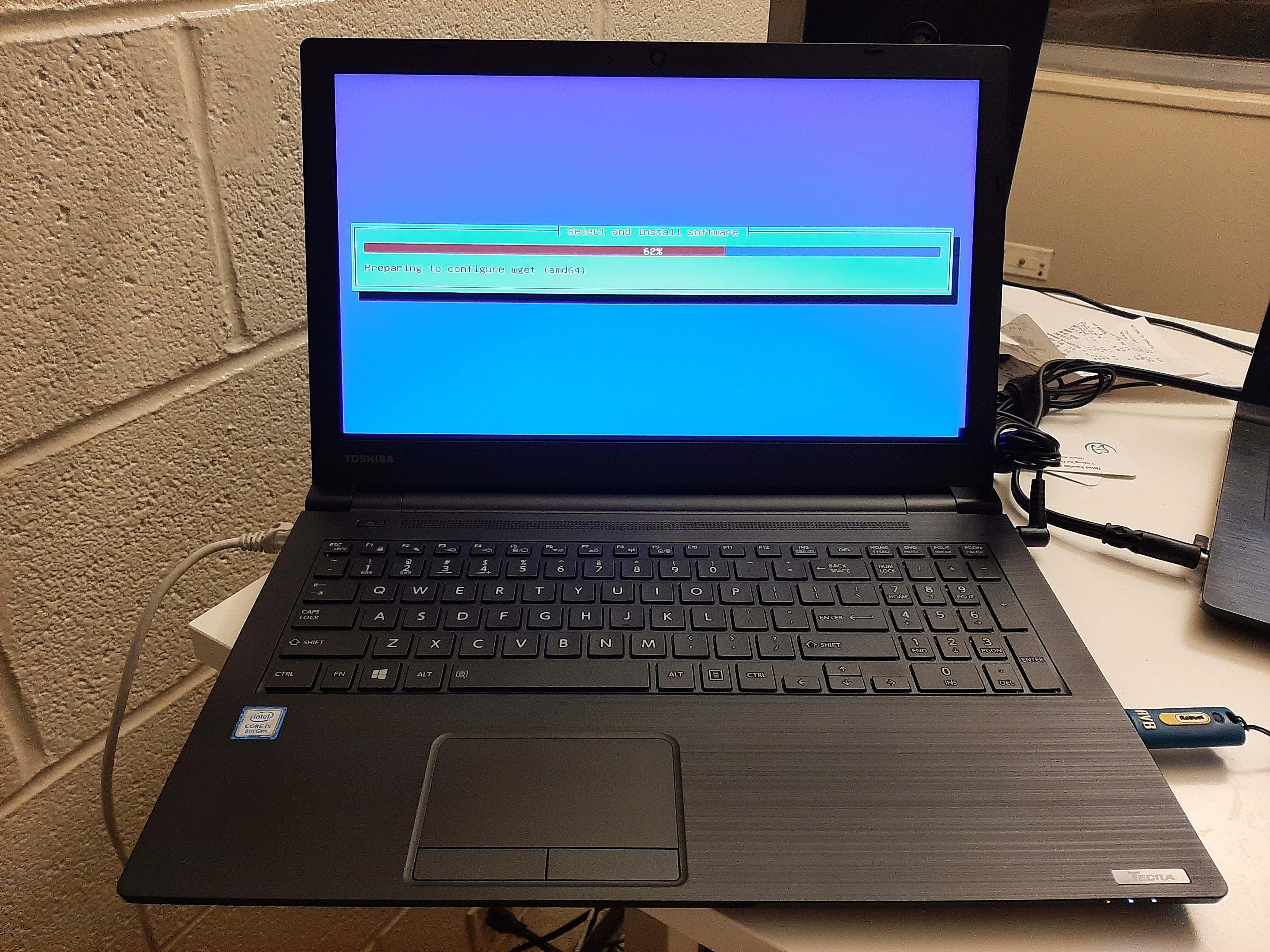

Install progress

Unneeded Services

By default Debian enables a number of services that may be unneeded by single-user machines, and may present security vulnerabilities.

netstat displays open ports, and when run as root with the -lp options, you see the processes listening on those ports.

$ sudo netstat -lp

Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:111             0.0.0.0:*               LISTEN      4819/rpcbind
tcp        0      0 127.0.0.1:25            0.0.0.0:*               LISTEN      4598/exim4
tcp6       0      0 :::111                  :::*                    LISTEN      4819/rpcbind
tcp6       0      0 ::1:25                  :::*                    LISTEN      4598/exim4
tcp6       0      0 :::6566                 :::*                    LISTEN      4639/saned
udp        0      0 0.0.0.0:754             0.0.0.0:*                           4819/rpcbind
udp        0      0 0.0.0.0:5353            0.0.0.0:*                           4672/avahi-daemon:
udp        0      0 0.0.0.0:1900            0.0.0.0:*                           4705/minissdpd
udp        0      0 0.0.0.0:49012           0.0.0.0:*                           4672/avahi-daemon:
udp        0      0 0.0.0.0:68              0.0.0.0:*                           1736/dhclient
udp        0      0 0.0.0.0:111             0.0.0.0:*                           4819/rpcbind
udp6       0      0 :::754                  :::*                                4819/rpcbind
udp6       0      0 :::5353                 :::*                                4672/avahi-daemon:
udp6       0      0 :::111                  :::*                                4819/rpcbind
udp6       0      0 :::35143                :::*                                4672/avahi-daemon:

None of these open ports are necessary on a single-user system except port 68 (bootpc) used by dhclient with DHCP to get an IP address from your ISP.

Services can be stopped with:

sudo service <service> stop

Services can be disabled so they are not started at boot time with:

sudo update-rc.d <service> disable

The following are services I stopped and disabled:

When those are shut down, netstat gives a nice, clean, secure listing:

$ sudo netstat -lp

Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
udp        0      0 0.0.0.0:bootpc          0.0.0.0:*                           1719/dhclient

Networking

The Intel Dual Band Wireless-AC 8265 (rev 78) is supported by the iwlwifi in the kernel, although you will need to install firmware.

Firmware

Add a non-free repository to /etc/apt/sources-list

deb http://deb.debian.org/debian bullseye main contrib non-free

Install the firmware-iwlwifi package:

sudo apt-get update
sudo apt-get install firmware-iwlwifi

When you reboot, iwconfig should show the device as wlp1s0:

$ sudo iwconfig

wlp1s0    IEEE 802.11  ESSID:off/any
          Mode:Managed  Access Point: Not-Associated   Tx-Power=0 dBm
          Retry short limit:7   RTS thr:off   Fragment thr:off
          Encryption key:off
          Power Management:on

Manual Configuration

I prefer to start and stop my networks manually, and removed the network-manager to avoid conflicts and problems encountered on other machines:

sudo apt-get remove network-manager

This will require you to add an entry to /etc/network/interfaces for the ethernet card:

rename ehp0s31f6=eth0
iface eth0 inet dhcp

The interface can then be started with the ifup command:

sudo ifup eth0

The interface can be stopped with the ifdown command:

$ sudo ifdown eth0

Wireless Configuration

For an open wireless network, you will need to add the SSID to the interface entry to /etc/network/interfaces.

iface wlp1s0 inet dhcp
wireless-essid <SSID>

For secure networks, you will need to add both the SSID and password that wpa_supplicant can use to associate with the network.

iface wlp1s0 inet dhcp
wpa-ssid <SSID>
wpa-psk <PASSWORD>

To have the interface start automatically on boot:

auto wlp1s0
iface wlp1s0 inet dhcp
wpa-ssid <SSID>
wpa-psk <PASSWORD>

The interface can then be started and stopped with the ifup and ifdown commands:

$ sudo ifup wlp1s0

$ sudo ifdown wlp1s0

Wireless Diagnostics

If the file configuration does not work, you may need to investigate further. You can start the interface with the ifconfig command.

$ sudo ifconfig wlp1s0 up

Access points can be displayed with the iwlist command:

$ sudo iwlist wlp1s0 scan

Access points can be configured with the iwconfig command:

$ sudo iwconfig wlp1s0 essid <SSID>

Note that the networking subsystem may not allow you to set an SSID directly, and dmesg will show the following messages. You will need to set the SSID in the /etc/network/interfaces file as shown above.

[1799230.571751] wlp1s0: authenticate with dc:b8:ac:83:b8:c2
[1799230.582457] wlp1s0: send auth to dc:b8:ac:83:b8:c2 (try 1/3)
[1799230.584963] wlp1s0: authenticated
[1799230.588207] wlp1s0: associate with dc:b8:ac:83:b8:c2 (try 1/3)
[1799230.589706] wlp1s0: RX AssocResp from dc:b8:ac:83:b8:c2 (capab=0x401 status=0 aid=1)
[1799230.593652] wlp1s0: associated
[1799230.594792] wlp1s0: deauthenticating from dc:b8:ac:83:b8:c2 by local choice (Reason: 3=DEAUTH_LEAVING)

Multimedia

The webcam is /dev/video0 and you can look at yourself with:

mplayer tv://dev/video0

This machine has an optical disk drive named /dev/sr0 you can use to burn CDs and DVDs.

Data CDs or DVDs can be burned on-the-fly with the growisofs utility from the dvd+rw-tools package. Assuming your files are in <directory>:

sudo growisofs -Z /dev/sr0 -R -J <file_directory>

wodim can be used to burn audio CDs from .wav files:

sudo wodim -v dev=/dev/sr0 -audio -pad *.wav

Removing systemd

systemd is an init system that bootstraps user space and manages processes. It has largely replaced the UNIX System V init systems on most distributions, with the objective of unifying basic Linux configurations across distributions.

systemd has provoked considerable controversy because of its complexity and its violation of fundamental Unix dependency philosophy.

It is actually fairly easy to remove and replace with classic Sys V, as described in these instructions. As with any major system change, full backup is recommended before proceeding.

Note that some user application packages are dependent on systemd, and will try to reinstall systemd if you try to install those packages. Notable ones include the kdenlive video editor, openshot-qt video editor, and vokoscreen video recorder. Keep an eye out for this when installing new packages.

  1. Install the System V init packages:
    2. sudo apt-get install sysvinit-core sysvinit-utils
  2. Copy the new inittab booting run level file:
    3. sudo cp /usr/share/sysvinit/inittab /etc/inittab
  3. Add this line to /etc/default/grub (not sure this is necessary):

    GRUB_CMDLINE_LINUX_DEFAULT="init=/lib/sysvinit/init text"
  4. Update the GRUB bootloader:
    5. sudo update-grub
  5. Set up /etc/X11/Xwrapper.config to run Xorg as root. While past versions of X accessed hardware directly and needed root access, some current drivers use kernel mode-setting (KMS). Although I'm not clear exactly what is going on with the driver for this chip, startx as a user other than root fail with messages like these:

    [    27.330] xf86EnableIOPorts: failed to set IOPL for I/O (Operation not permitted)
[    27.907] (EE) modeset(0): drmSetMaster failed: Permission denied
[    27.907] (EE) Fatal server error:
[    27.907] (EE) AddScreen/ScreenInit failed for driver 0

    The workaround is to install the xserver-xorg-legacy package and add the following line to the /etc/X11/Xwrapper.config file:

    needs_root_rights=yes
  6. Reboot
    7. sudo reboot
  7. Remove the systemd package:
    8. sudo apt-get remove --purge --auto-remove systemd
  8. Create the /etc/apt/preferences.d/systemd file and add these lines to it. Pinning allows pulling particular packages from a later release version. Giving systemd packages negative pin priority prohibits installation.
    9. Package: systemd
Pin: release *
Pin-Priority: -1
Package: *systemd*
Pin: release *
Pin-Priority: -1
Package: systemd:amd64
Pin: release *
Pin-Priority: -1
Package: systemd:i386
Pin: release *
Pin-Priority: -1
  9. Verify systemd is gone from your system. It is an insidious package that is a bit difficult to confirm is gone:
    10. aptitude search systemd

	The systemd package should be listed with a
	"p" beside it, indicating it is
	a package that is not installed

pstree -p

	The root process should be init rather
	than systemd

ls -l /sbin/init

	The file /sbin/init should be an executable
	binary (ELF) file rather than a symbolic link

Removing the Desktop

If you're hard core command line and don't want the clutter and delay of the a desktop, you might consider getting rid of the desktop altogether and just using a window manager to manage xterms and X applications started from the xterms. This will speed your boot time a bit and get rid of some annoying background daemons.

IceWM: Rather than a desktop, I use the ICE Window Manager which is much faster and lighweight than bloated desktops like GNOME, while having some helpful features like a task bar with graphical system monitoring:

sudo apt-get install icewm

.xinitrc is a file that is executed when X is started. Create a .xinitrc in your home directory (/home/<username>) and type the following lines. This creates a couple single terminal window, sets the "desktop" color to pleasant shade of greenish grey blue and starts the window manager. When you type "startx", from the text login, it will start an xterm, in which you can type commands to start other programs. You can create additional terminal windows from a popup menu when you right-click on the desktop.

I found the full brightness to be a bit much, especially in contrast to older, dimmer LCD displays. The backlight doesn't seem to be accessible through ACPI, but the xgamma command adjusts midtones (gamma) and warms things up a bit, although this is optional.

xgamma -gamma .7
xsetroot -solid "dark slate gray"
xterm -geometry 128x24+10+10&
xterm -geometry 128x24+10+375&
exec icewm

xgamma -gamma .7

IceWM Themes: There are a wide variety of additional IceWM themes available at ice-wm.org". I happen to be fond of Crux-Teal

Configure GRUB for terminal mode start: It is helpful to see what is goin on during boot rather than have boot messages hidden behind the splash bitmap just in case there's a boot problem (which used to happen alot). Adding this line to the /etc/default/grub file will cause the machine to boot in console mode:

GRUB_TERMINAL=console

Then run:

sudo update-grub

After these changes, on boot you will see the system startup messages and then be greeted with a console login prompt. After logging in, you can use the startx command to start the graphical desktop.

startx

PulseAudio is a nasty sound server that adds latency and eats up CPU. If you don't have the desktop you can ditch it.

sudo apt-get purge pulseaudio

TrueType Fonts

The X window server supports TrueType (tm) fonts, although installing them via the command line is a bit more cumbersome than with an installer program or package. If you've got some on a Windoze box, TrueType fonts tend to look quite a bit better than the fonts that come with the distributions. And if you're doing any web development, you need them to have at least a guess as to what your pages look like on a Windoze box.

Unfortunately, the FontPath configuration that specifies the directories where fonts are located is compiled into the X binary and is not configurable. While "xset +fp" can add a directory to the font path, that setting is not permanent and is lost when you reboot. xset cannot be added to a local configuration file like .xinitrc. This is not a problem for newer applications that use fontconfig, but this may represent an issue for older applications that only use the X font paths. The kludge is to copy the fonts you want to add into one of the configured truetype font directories.

Copy the fonts into a shared font directory: You can do an "xset -q" to find the configured Font Paths for your X configuration:

xset -q

Chose one of the directories listed in "Font Path" and copy your .ttf font files into that directory. In my case, I chose to use /usr/share/fonts/X11/misc. While you could create a new directory under /usr/share/fonts, fonts installed there would not be visible to xlsfonts or older X applications.

sudo cp your-fonts/*.ttf /usr/share/fonts/X11/misc

Then run mkfontscale to create the fonts.scale file and mkfontdir to create the fonts.dir files used by the X server. You should also change the owner of all the files to root to avoid permission problems. The mkfontscale and mkfontdir steps are critical if you want to be able to list your fonts with xlsfonts or other legacy X applications.

cd /usr/share/fonts/X11/misc
sudo mkfontscale
sudo mkfontdir
sudo chmod 644 *.ttf
sudo chown root:root *.ttf

You can check to verify the fonts are loading by starting an X application (like gimp). The xlsfonts command lists fonts available directly from X and the fc-list command lists fonts available through fontconfig.

xlsfonts | less
fc-list | less

The listing will likely be long, but if the fonts are loading correctly, you will see X font names like these (for Arial and Garamond, respectively):

-monotype-arial-medium-i-normal--0-0-0-0-p-0-iso8859-1
-monotype-arial-medium-i-normal--0-0-0-0-p-0-iso8859-10
-monotype-arial-medium-i-normal--0-0-0-0-p-0-iso8859-15
-monotype-arial-medium-i-normal--0-0-0-0-p-0-iso8859-2

-monotype-garamond-medium-i-normal--0-0-0-0-p-0-iso8859-1
-monotype-garamond-medium-i-normal--0-0-0-0-p-0-iso8859-10
-monotype-garamond-medium-i-normal--0-0-0-0-p-0-iso8859-15
-monotype-garamond-medium-i-normal--0-0-0-0-p-0-iso8859-2

Fonts, especially in the browser may look a bit jagged if fontconfig does not have subpixel-hinting and font-smoothing turned on. Create a .config/fontconfig/.fonts.conf file in your home directory and add the following contents:

<?xml version='1.0'?>
<!DOCTYPE fontconfig SYSTEM 'fonts.dtd'>
<fontconfig>
 <match target="font">
  <edit mode="assign" name="rgba">
   <const>rgb</const>
  </edit>
 </match>
 <match target="font">
  <edit mode="assign" name="hinting">
   <bool>true</bool>
  </edit>
 </match>
 <match target="font">
  <edit mode="assign" name="hintstyle">
   <const>hintslight</const>
  </edit>
 </match>
 <match target="font">
  <edit mode="assign" name="antialias">
   <bool>true</bool>
  </edit>
 </match>
  <match target="font">
  <edit mode="assign" name="lcdfilter">
    <const>lcddefault</const>
  </edit>
  </match>
</fontconfig>

Mounting Smartphones and Cameras

Many Android smartphones support media transfer protocol (MTP) to facilitate exchanging data between devices. When you connect your phone to a USB port, the phone's file system is accessible via MTP.

jmtpfs can be used to mount MTP devices on a mount point.

mkdir phone
jmtpfs phone

Devices can be unmounted using fusermount -u.

fusermount -u phone

Note that when you mount a phone, you will need to approve the "Allow access to phone data" prompt on your phone.

If you connect often, it may be helpful to create a regular mount point (/media/camera):

sudo mkdir /media/camera
chmod 0777 /media/camera

...and add the line below to /etc/fstab so the device can be mounted using the standard mount and umount commands.

/usr/bin/jmtpfs	/media/camera	fuse	nodev,rw,user,noauto	0	0

If you get an Input/output error when attempting to umount, sudo umount will probably solve the problem.

I've come to the conclusion, as Duke Ellington did much earlier, that leading a band is really a hobby -- something you do because you love it. As a business, it's a complete flop. (Woody Herman)
